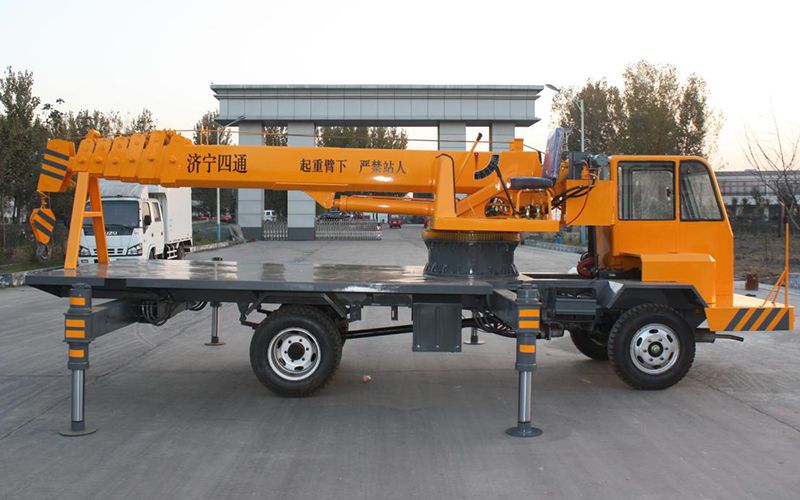

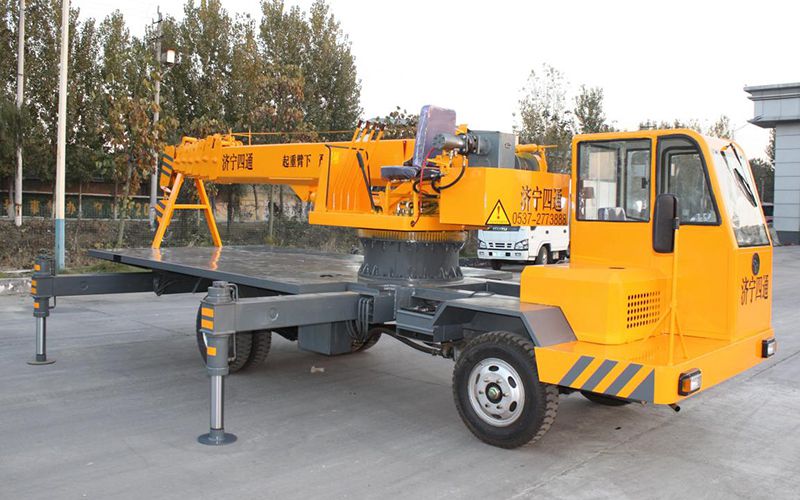

5T Boom Truck, SST5SZ7
SST5SZ7 5-ton boom truck is designed with our independently developed chassis and Changchai 46HP engine, the maximum lifting height is up to 18m. The boom truck is configured with a telescopic boom supported by horizontal cable and 360-degree rotating platform, capable of lifting and moving heavy materials within a construction site.
Specifications
- Max. loading capacity
- 5000kg
- Max. lifting height
- 18m
- Outrigger span
- 4m
- Boom
- 7 sections (3.5m per section)
- Engine power
- 34kW
- Motor power
- 11kW
- Max. lifting moment
- 12.5t.m
- Boom raising angle
- 0-75°
- Slewing angle
- 360°
- Slewing speed
- 2.5r/min
- Travel speed
- up to 60km/h
