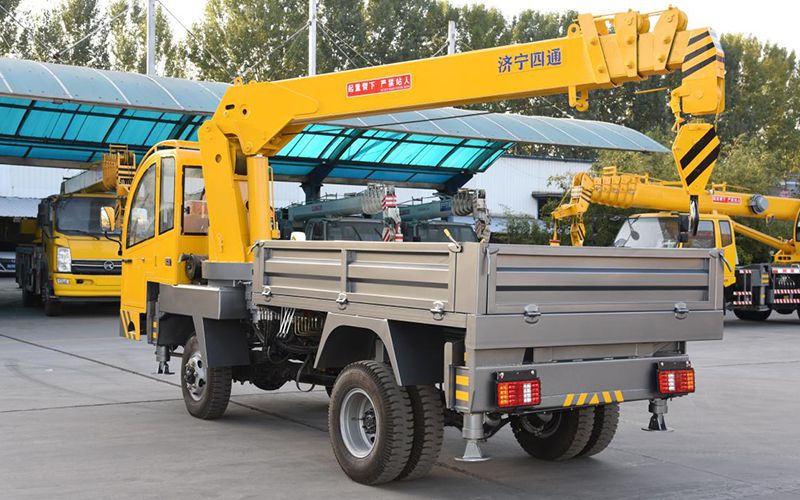

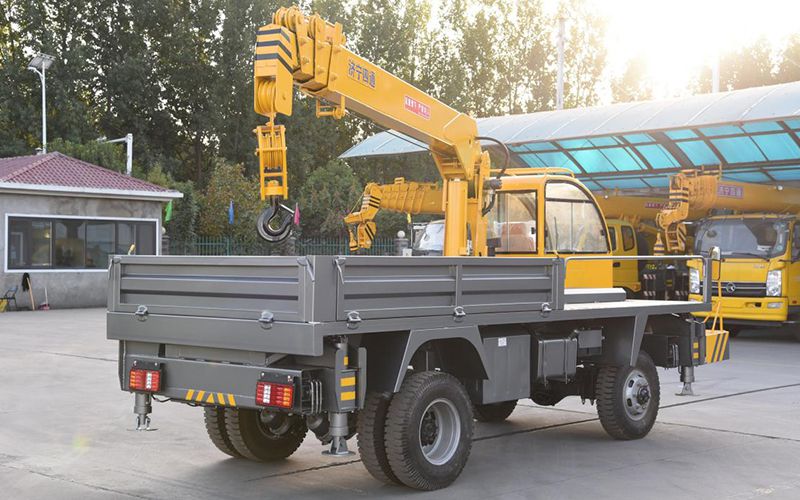

6T Boom Truck, SST6SZ5
SST6SZ5 6-ton boom truck is designed with our independently developed chassis and Changchai 70HP engine, the maximum lifting height is up to 12m. The boom truck is configured with a telescopic boom supported by horizontal cable and 360-degree rotating platform, capable of lifting and moving heavy materials within a construction site.
Specifications
- Max. loading capacity
- 6t
- Max. lifting height
- 12m
- Outrigger span
- 4.3m
- Boom
- 5 sections (3.5m per section)
- Engine power
- 51kW
- Motor power
- 11kW
- Max. lifting moment
- 15t.m
- Boom raising angle
- 0-75°
- Slewing angle
- 360°
- Slewing speed
- 2.5r/min
- Travel speed
- up to 60km/h
