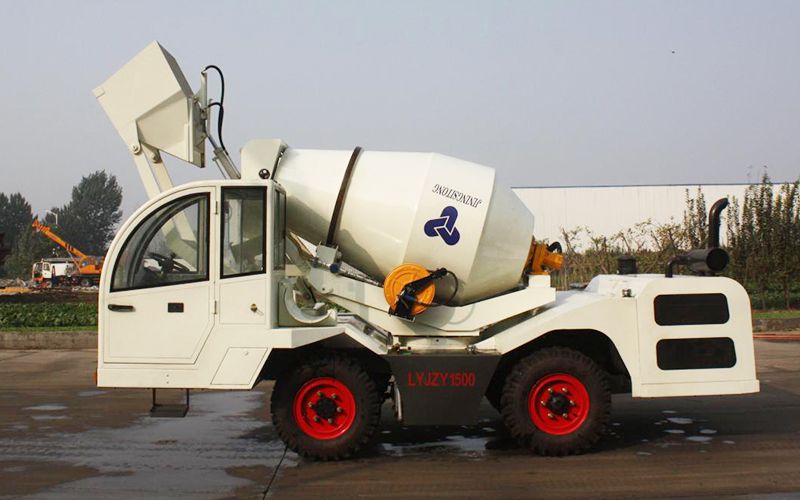

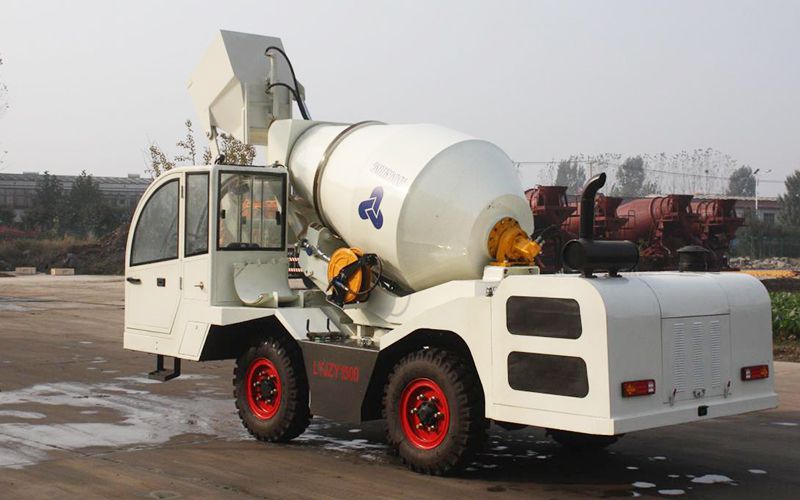

1.5m³ Self-Loading Concrete Mixer, LYJZY1500
Our LYJZY1500 self-loading concrete mixer can provide the maximum concrete output of 1.5m³. It is configured with Yuchai YC4F55-T20 engine, 4×4 drive, automatic water system and 750-16 tyres. The total mass of this 1.5m³ self-loading concrete mixer is 8200kg.
Feature- Specially designed structure offers the self-loading concrete mixer with an ideal weight balance, allowing it to travel and climb stably over muddy roads and slopes in construction sites;
- Suitable for long-distance mixing transport of concrete mixture, having better mobility than traditional concrete mixers;
- Integrating functions of automatic loading, mixing, transporting and unloading of materials, significantly reducing labor intensity and cost while greatly improving efficiency;
- Automatic substances loading and automatic water metering, easy to operate and fast mixing time;
Specification
- Concrete output
- 1.5cbm
- Water tank capacity
- 300L
- Drum rotation speed
- 0-14r/min
- Engine model
- YC4F55-T20
- Power
- 40kW
- Tyres
- 750-16
- Drive
- 4*4 drive
- Vehicle weight
- 4950kg
- Total mass
- 8200kg
- Dimensions
- 5700mm*2100mm*2800mm
