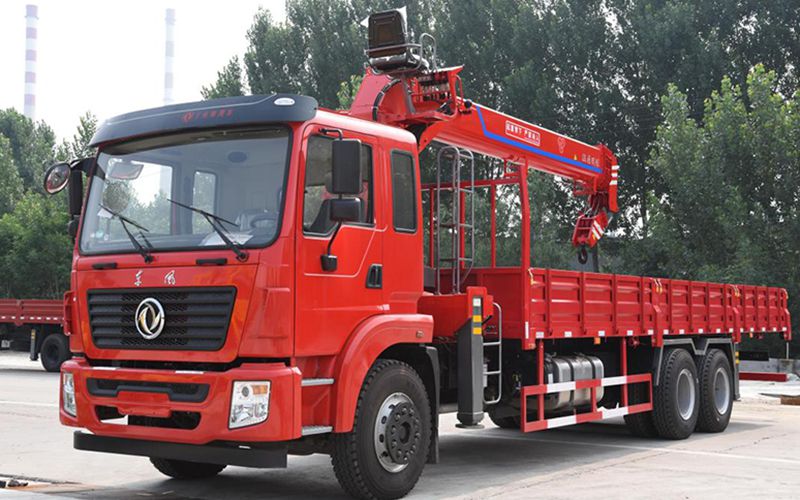

12T Boom Truck, SST12S5
Our SST12S5 12-ton boom truck uses Dongfeng truck chassis and Yuchai 180HP engine. The 5-section telescopic boom features U-shaped cross section and a horizontal supporting cable, the maximum lifting height can reach 19m. The boom truck can lift and move heavy materials in construction sites.
Features
- The telescopic boom features U-shaped cross section, providing a greater resistance to load-induced deflection;
- Equipped with over-winding protection system to avoid safety hazards caused by breakage of wire rope;
- Adopting integrated slewing mechanism;
- Four hydraulic stabilizer legs ensure high stability and versatility for lifting operation;
- Fitted with load-sensing hydraulic system, providing good adaptability and high working efficiency;
- Compact structure, less installation space and superior look;
- Max. loading capacity
- 12000kg
- Max. lifting height
- 19m
- Outrigger span
- 5.8m
- Boom
- 5 sections (5.3m per section)
- Main boom length
- 5.4m-16.5m
- Max. lifting moment
- 30t.m
- Boom raising angle
- 0-75°
- Slewing angle
- 360°
- Slewing speed
- 2.5r/min
