12T Truck Cranes, STSQ12DF

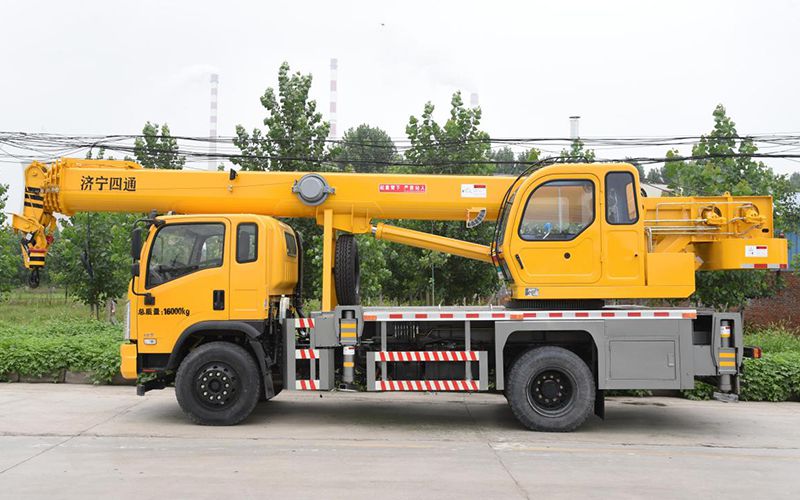

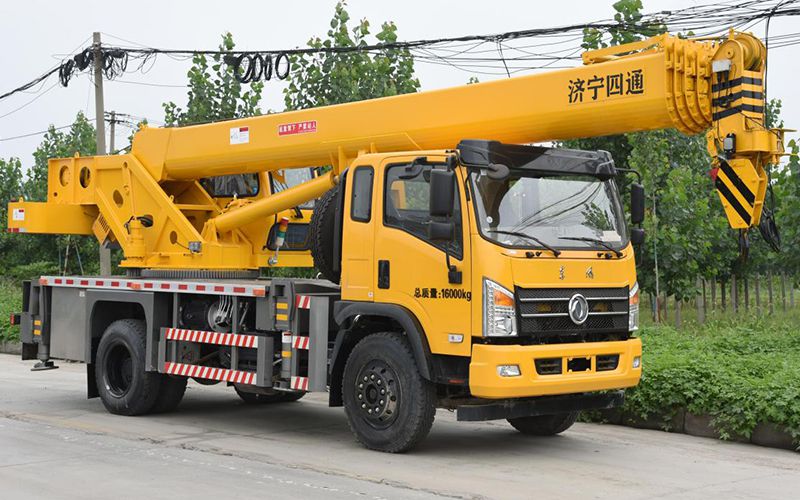

STSQ12DF is a 12-ton truck-mounted crane that adopts Kama truck chassis with features of compact structure and small turning radius, making the truck crane versatile for tight spaces with difficult access. The telescopic boom can extend to the maximum length of 31.5m, and it has a horizontal supporting cable to ensure that the telescopic boom extents and retracts freely in horizontal position. The configuration of 15kW motor, double-section stabilizer legs and 360-degree rotating platform enables the crane truck to work stably and efficiently.
Features
- Outrigger system of hydraulic double-section stabilizer legs, wider outrigger span ensures stable operation;
- 5-section telescopic boom of U-shaped cross section can be extended to its maximum length of 31.5m, the maximum loading capacity of 12 tons, the maximum working radius of 22m, providing better stability than other mobile cranes with equivalent load capacity;
- This mobile crane can be operated with either fuel oil or electricity, it can be directly connected to 380V standard industrial power for more energy efficient and maintenance-free operation;
- Standard connectors and cables are configured for easy operation;
- Newly developed hydraulic system ensures high working efficiency and low energy consumption;
- 360-degree rotating platform;
- Max. loading capacity
- 12t
- Max. lifting height
- 31.5m
- Longitudinal outrigger span
- 6.5m
- Transversal outrigger span
- 4.6m
- Boom
- 5 sections (7.5m per section)
- Dimensions
- 9.93m*2.35m*3.32m
- Motor power
- 15kW, 380V, 50Hz, 3 Phase
- Tyres
- 900R20
- Wheelbase
- 3950mm
- Crane weight
- 16000kg
