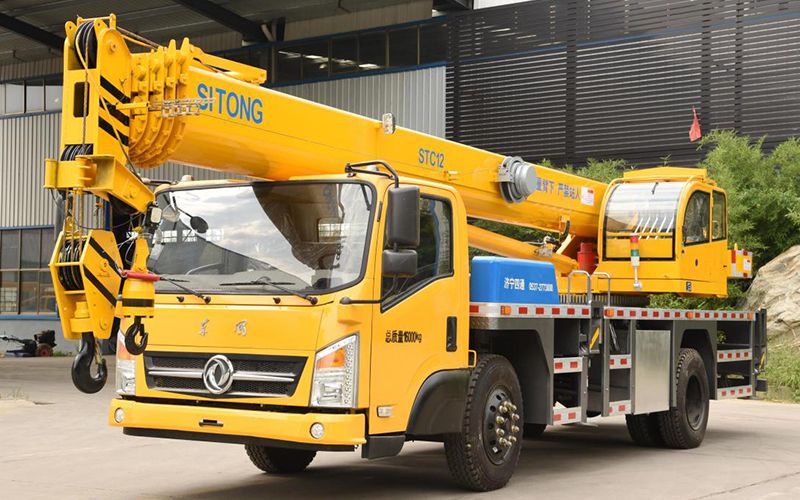

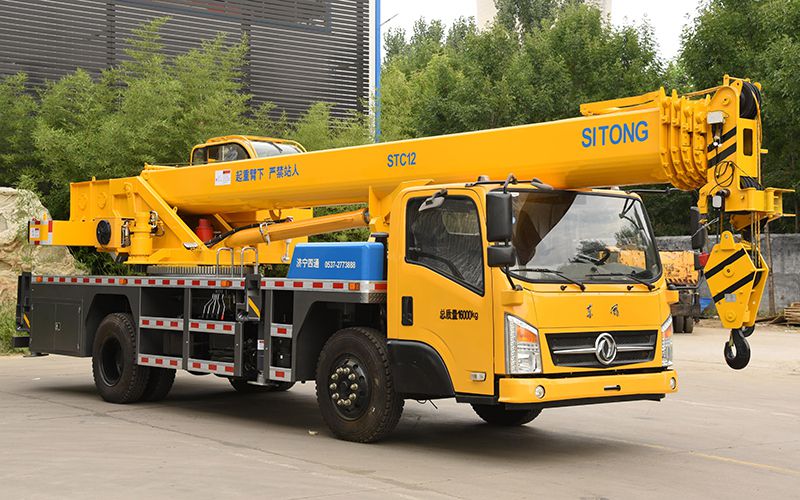

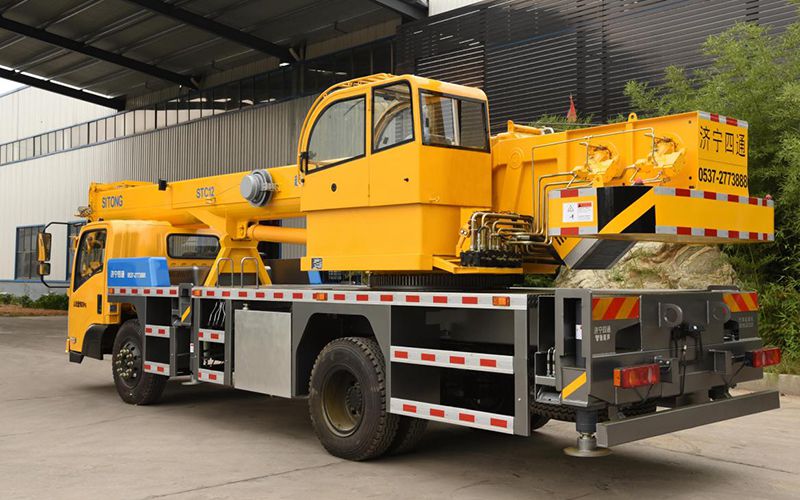

16T Telescopic Truck Cranes, STSQ16DF-L
STSQ16DF-L 16-ton telescopic truck-mounted crane utilizes Dongfeng truck chassis that has compact structure and small turning radius, making it able to work stably and efficiently in limited spaces. The telescopic boom can be extended to the maximum length of 34m, and it is equipped with a horizontal supporting cable to enable boom extension and retraction to be achieved freely in horizontal position. This truck-mounted crane is configured with 15kW motor, double-section stabilizer legs and 360-degree rotating platform, providing stable and reliable operation, as well as easy maintenance.
Features
- 5-section telescopic boom of U-shaped cross section can be extended to its maximum length of 34m, the maximum loading capacity of 16 tons, the maximum working radius of 24m, providing better stability than other mobile cranes with equivalent load capacity;
- Three-pump confluence control technology is adopted to permit higher performance and efficiency of composite action, thus guaranteeing high efficiency and smooth operation;
- This mobile crane can be operated with either fuel oil or electricity, it can be directly connected to 380V standard industrial power for more energy efficient and maintenance-free operation;
- Standard connectors and cables are configured for easy operation;
- Newly developed hydraulic system ensures high working efficiency and low energy consumption;
- Advanced ergonomic design ensures operator comfort, low operating cost, long service life;
- 360-degree rotating platform;
- Max. loading capacity
- 16t
- Max. lifting height
- 34m
- Longitudinal outrigger span
- 5.22m
- Transversal outrigger span
- 5.07m
- Boom
- 5 sections (8m per section)
- Dimensions
- 10.6m*2.35m*2.85m
- Motor power
- 15kW, 380V, 50Hz, 3 Phase
- Engine
- Cummins, 170HP
- Tyres
- 1000R20
- Wheelbase
- 4200mm
- Crane weight
- 16000kg
