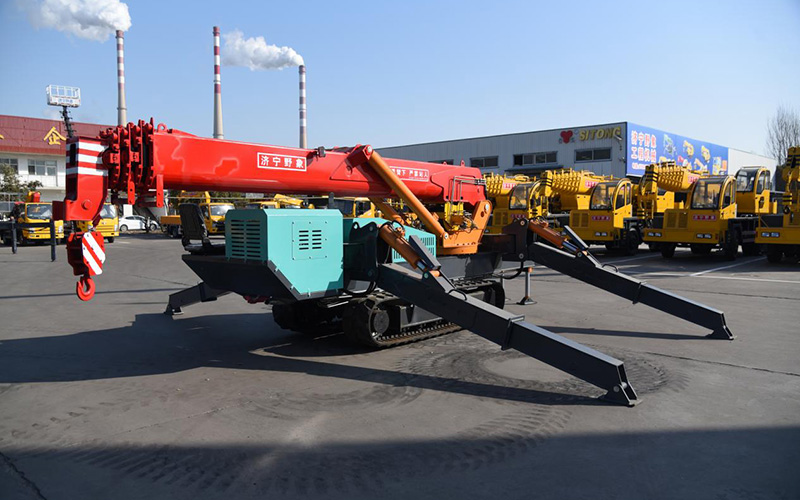

10T Crawler Spider Crane
The 10T crawler spider crane can lift and transport up to 10 tons. Equipped with a high-powered CHANGCHAI 4G33 engine, this crawler spider crane offers a maximum working radius of 21.3m. Its hexagonal boom structure provides superior bending and torsional stiffness, ensuring stability in complex environments.
Specifications
| Crane capacity | 10T×2.5m | |
| Max. working radius | 21.3m | |
| Max. lifting height | 22.8m | |
| Winch | Lifting speed | 10m/min (4 ropes) |
| Wire rope size | Ø11mm×45m | |
| Telescopic system | Boom type | Hexagonal shaped boom, 5 sections |
| Telescopic boom length | 4.65-16.4m | |
| Telescoping speed | 12.3m/54s | |
| Derricking angle/speed | 0-80°/13s | |
| Slewing angle/speed | 0-360° (continuous)/38s | |
| Outrigger | Outrigger action | Manual+hydraulic |
| Max. extension | One-side lateral extension 3.1m Total span 7.5m | |
| Traction system | Drive | Hydraulic motor |
| Travel speed | 0-3km/h | |
| Gradeability | 32°(36%) | |
| Engine | Manufacturer | CHANGCHAI |
| Type | 4G33 | |
| Starting method | Electric | |
| Starting temperature | -5°C to 40°C | |
| Fuel | Diesel | |
| Battery capacity | 12V 45AH | |
| Emission standard | China III | |
| Operation system | Type of operation (boom/outrigger) | Manual operation, manual travel |
| Operating characteristics | Manual operation | |
| Standard configuration | Diesel engine and electric motor (dual drive) | |
| Dimensions | 6100×1800×2400mm | |
